Water Testing Kit

The DO-5510HA Oxygen Meter provides accurate and reliable measurements of dissolved oxygen (DO), oxygen in air (O2), and temperature, making it an essential tool for various applications including aquariums, medical research, agriculture, fish hatcheries, laboratories, water conditioning, mining industry, schools, and quality control.

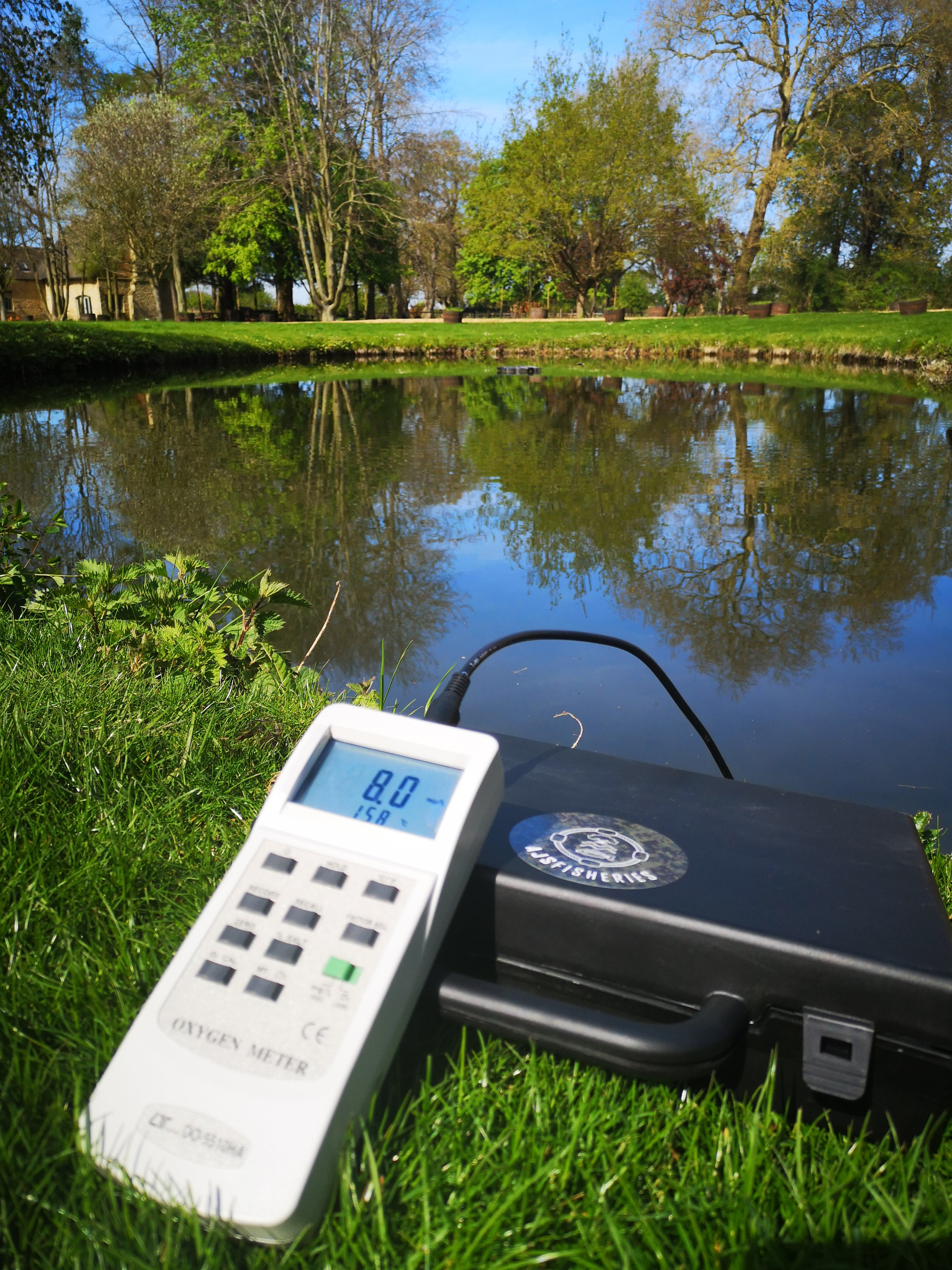

We have been using this monitoring kit in the day to day management of  our fish farm and fisheries for over 10 years now and swear by its effectiveness. The kit allows you to quickly check eight water quality parameters including; Oxygen, temperature, pH, ammonia, nitrite and hardness all in one convenient cary case.

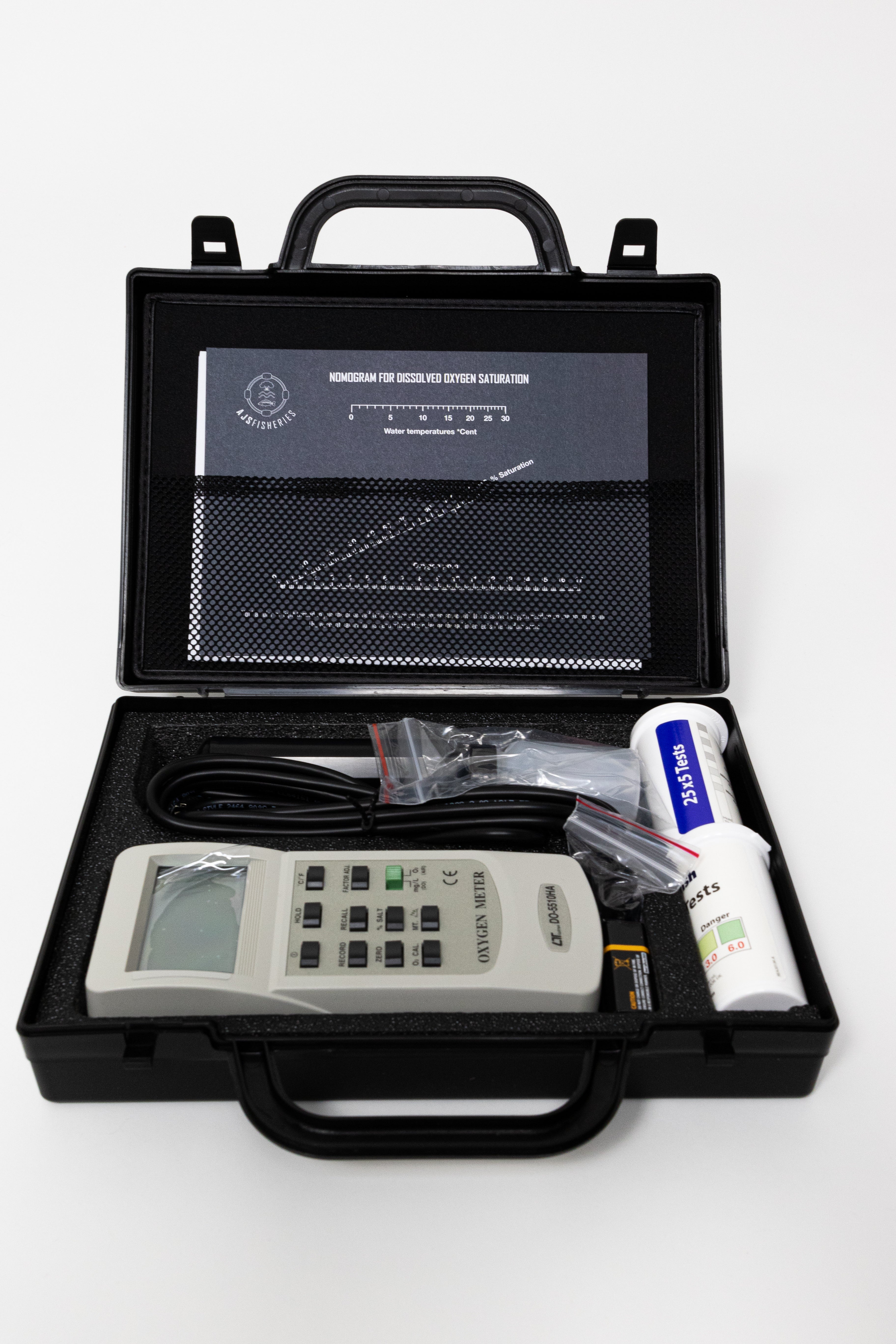

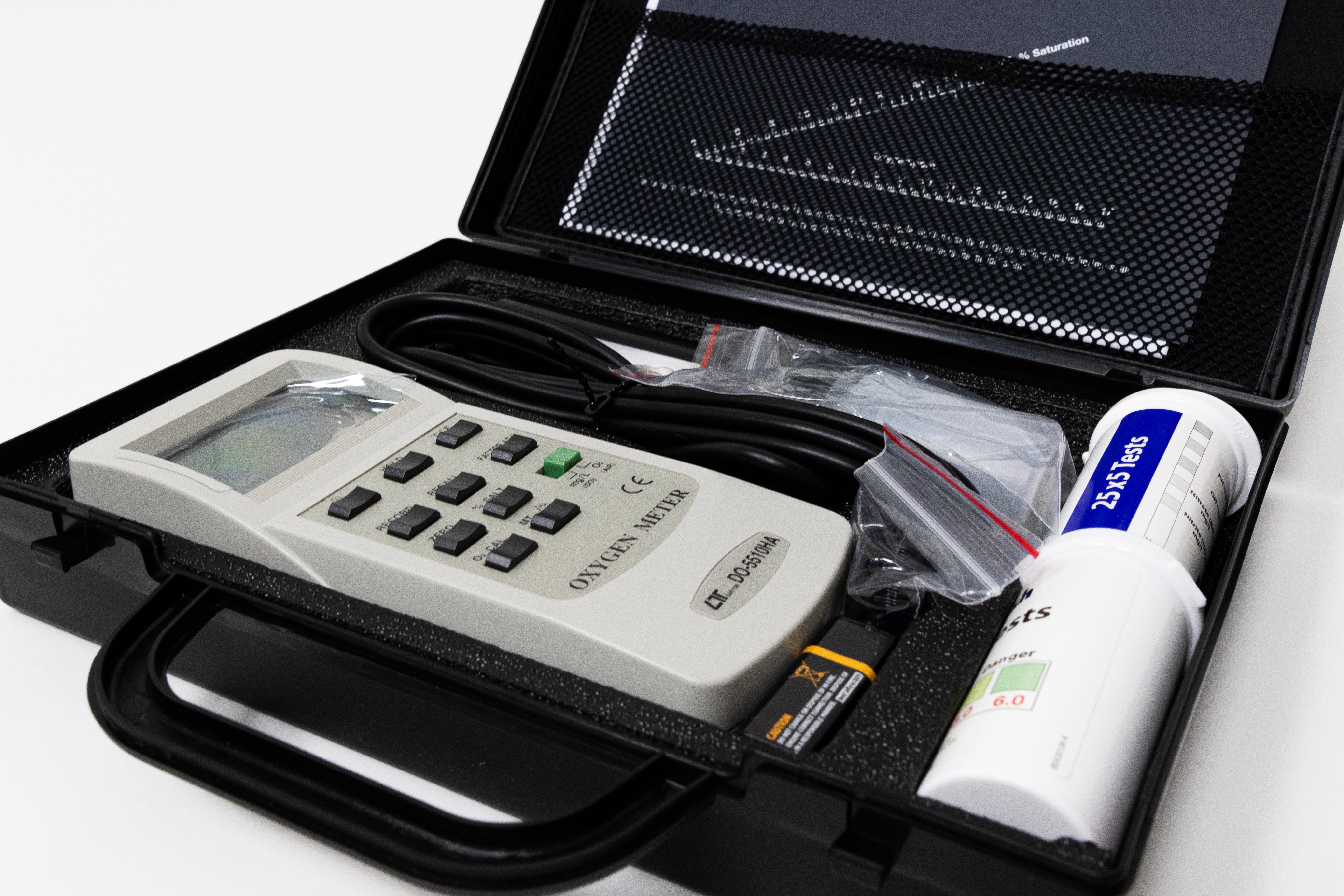

Included in the Kit

• DO-5510HA Oxygen Meter including galvanic probe
• Blagdon 6 in 1 dip test strips
• Prob electrolyte
• 9V battery
• Spare diaphragm covers

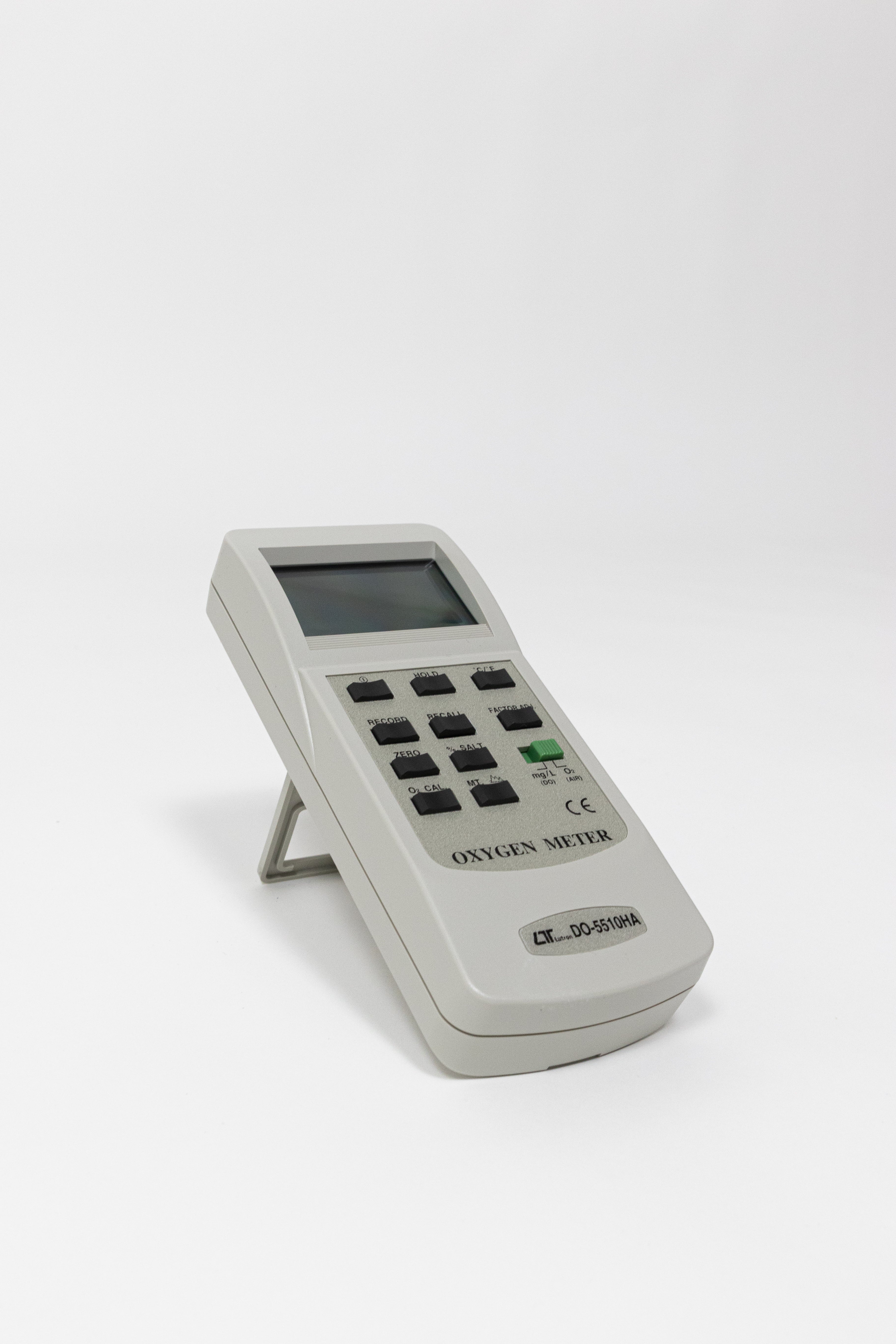

Exceptional Features of the DO-5510HA:

1. High Precision Measurements:

-Equipped with a polarographic type oxygen probe with an incorporated temperature sensor, ensuring high precision for DO, O2, and temperature measurements.

2. Automatic Temperature Compensation:

-Features automatic temperature compensation from 0 to 50℃, providing accurate readings across different environments.

3. Durable Design:

-Heavy-duty dissolved oxygen probe that can connect with BOD bottles, and a robust, compact ABS-plastic housing case for durability and long-lasting performance.

4. User-Friendly Adjustments:

-Includes built-in adjustments for "‰ SALT" and "Mountain Height" compensation, with easy factor adjustment via push buttons on the front panel.

5. Advanced Functions:

-Microprocessor circuit ensures high accuracy and special functions such as maximum, minimum, and average reading records with recall, data hold, and auto power off to save battery life.

Technical Specifications:

- Measurement Range and Resolution:

  - Dissolved Oxygen: 0 to 20.0 mg/L, 0.1 mg/L resolution

  - Oxygen in Air: 0 to 100.0%, 0.1% O2 resolution

  - Temperature: 0 to 50℃, 0.1℃ resolution

- Accuracy:

  - Dissolved Oxygen: ±0.4 mg/L

  - Oxygen in Air: ±0.7% O2

  - Temperature: ±0.8℃ / ±1.5℉

- Display:

  - Dual function meter's display

  - 13 mm (0.5 inch) super large LCD with contrast adjustment

- Sampling Time: Approx. 0.4 second

- Power Supply:

  - 006P DC 9V battery (heavy duty type)

  - Power Consumption: Approx. DC 6.6 mA

- Operating Environment:

  - Temperature: 0 to 50℃

  - Humidity: Max 80% RH

- Dimensions and Weight:

  - Main Instrument: 185 x 78 x 38 mm (7.3 x 3.0 x 1.5 inches)

  - Oxygen Probe: 190 mm x 28 mm Dia. (7.5" x 1.1" Dia.)

  - Weight: 335 g (0.74 lb, including batteries and probe)

Accessories Included:

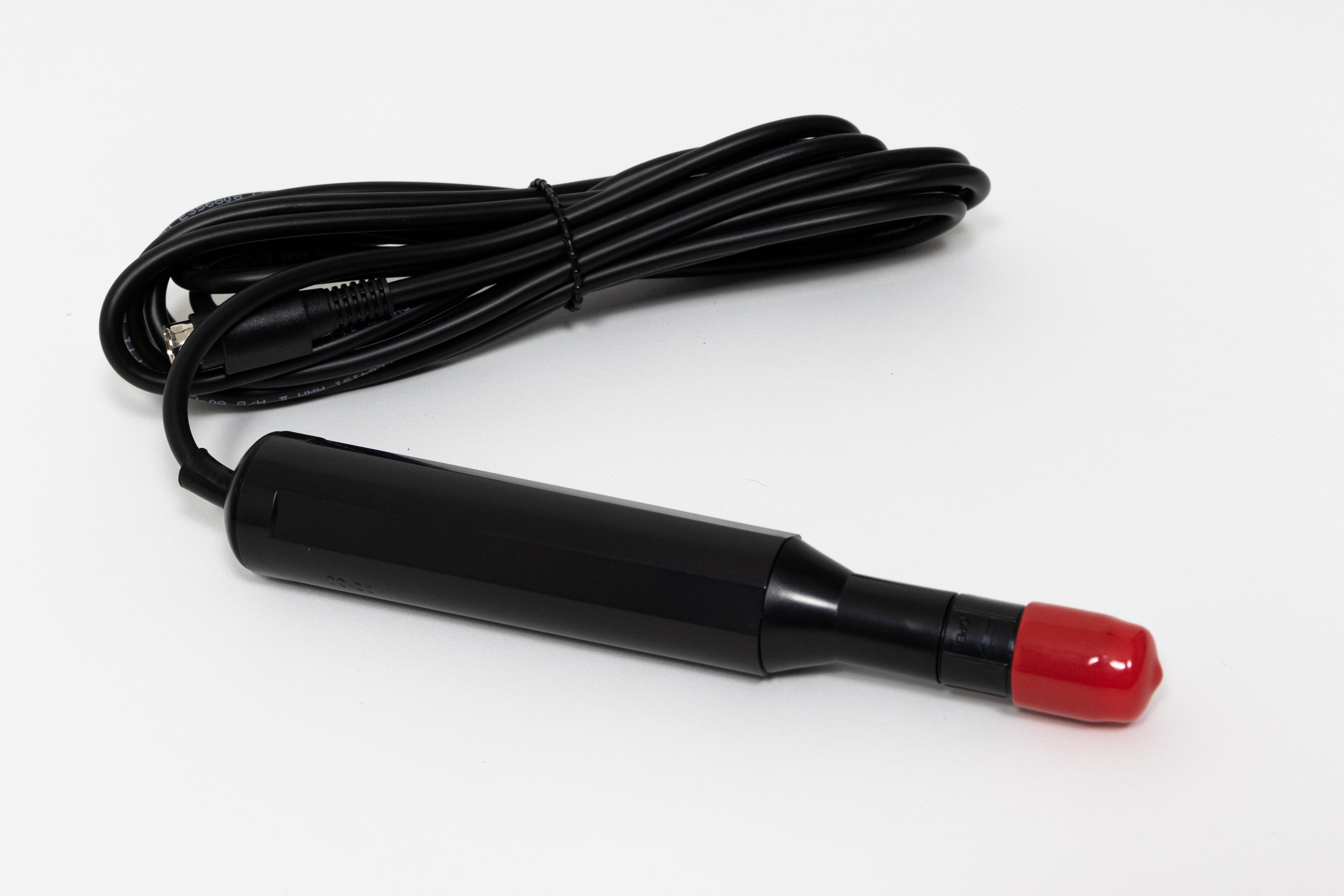

- Oxygen Probe (OXPB-11): 1 PC

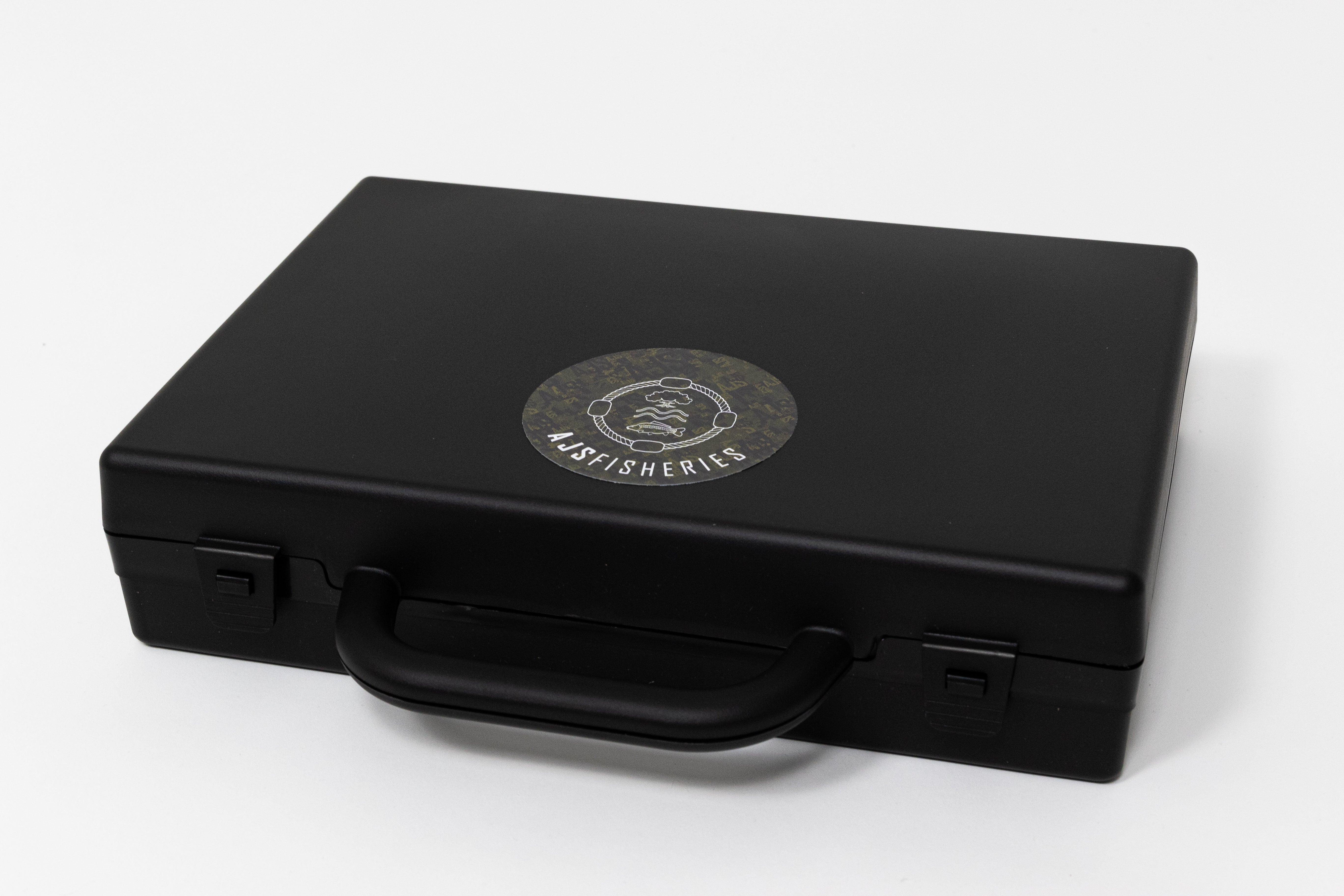

- Carrying Case: 1 PC

- Operation Manual: 1 PC

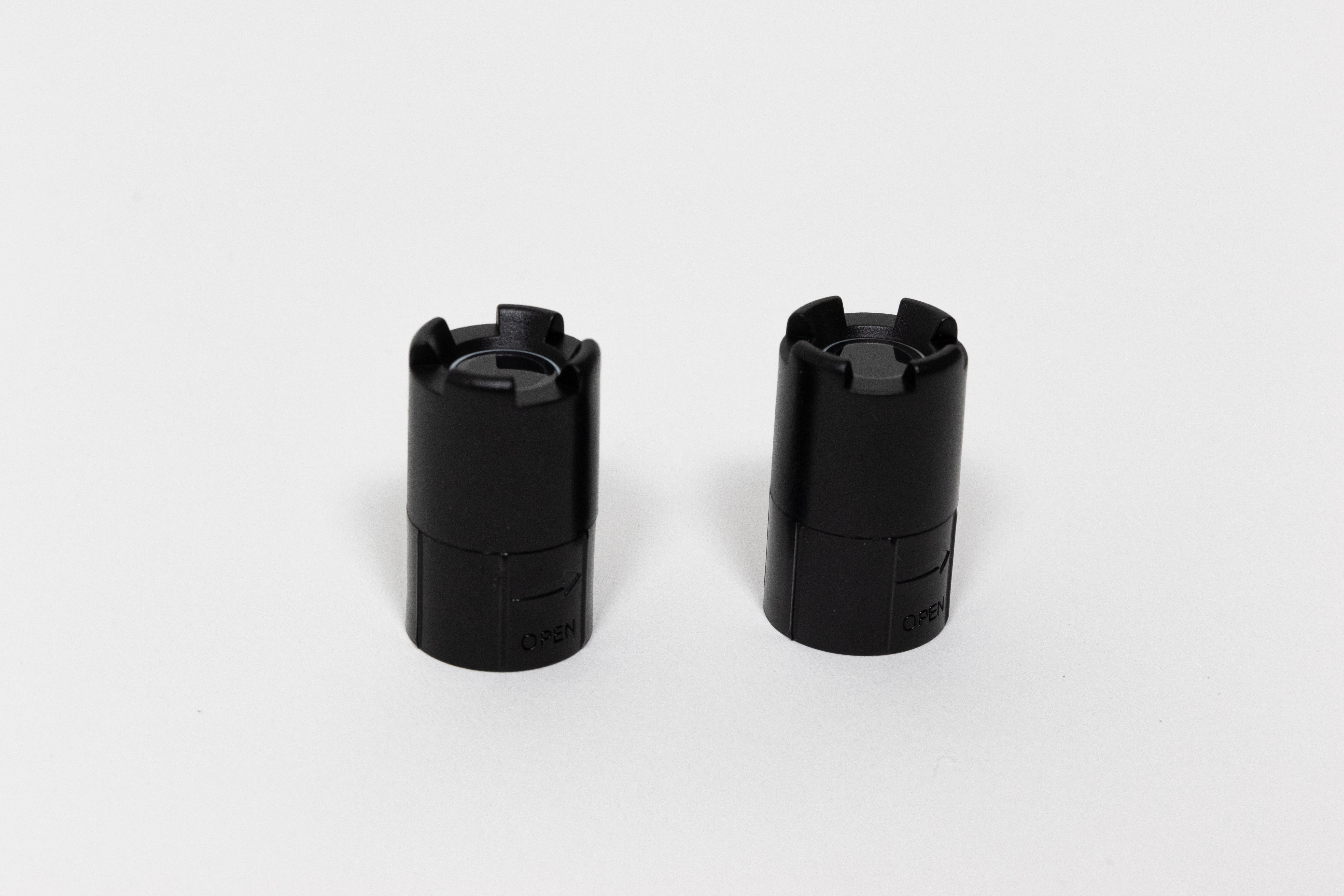

- Spare Probe Head with Diaphragm (OXHD-04): 2 PCs

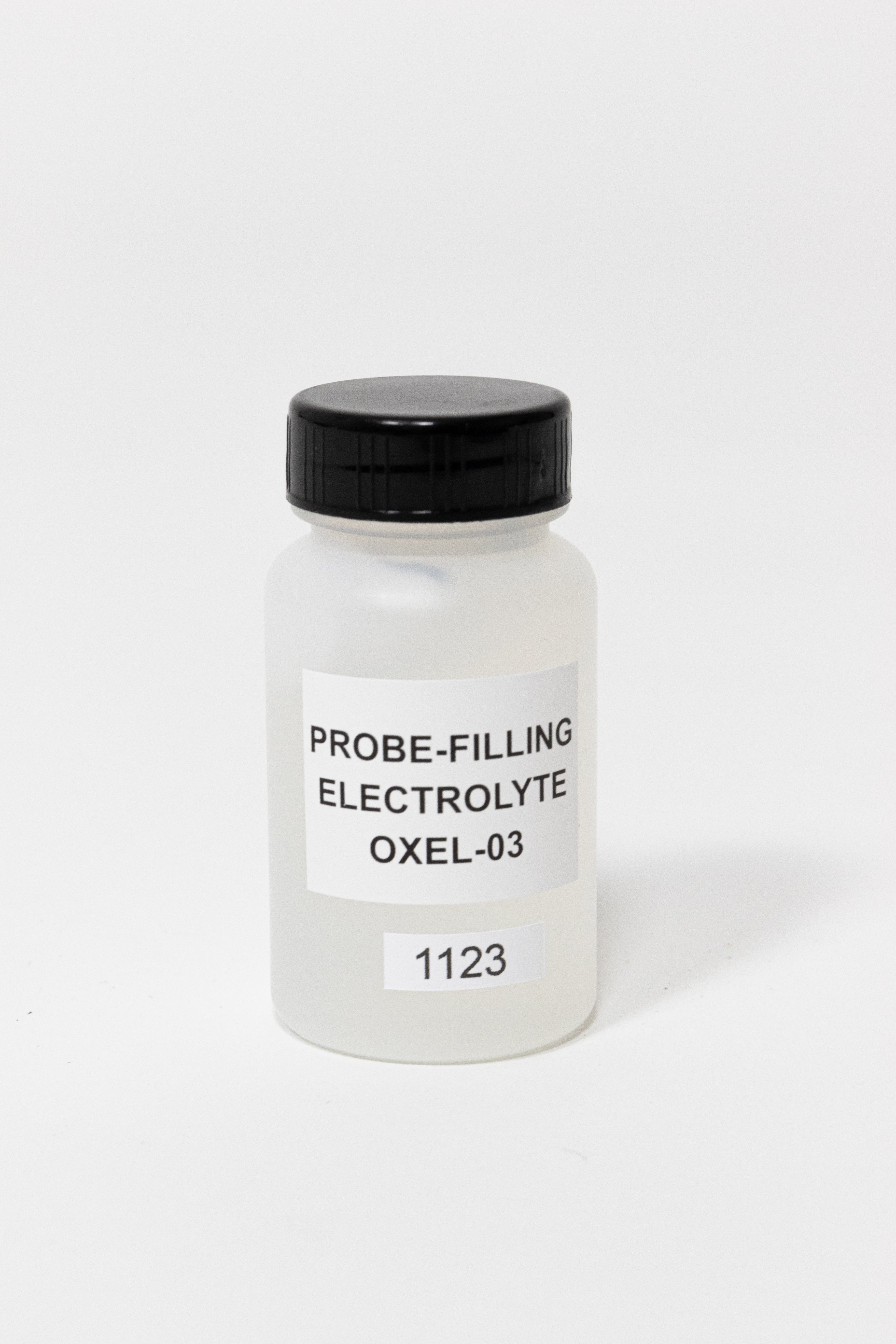

- Probe-Filling Electrolyte (OXEL-03): 1 PC

Optional Accessories:

- Oxygen Probe (OXPB-11)

- Spare Probe Head with Diaphragm Set (OXHD-04)

- Probe-Filling Electrolyte (OXEL-03)
